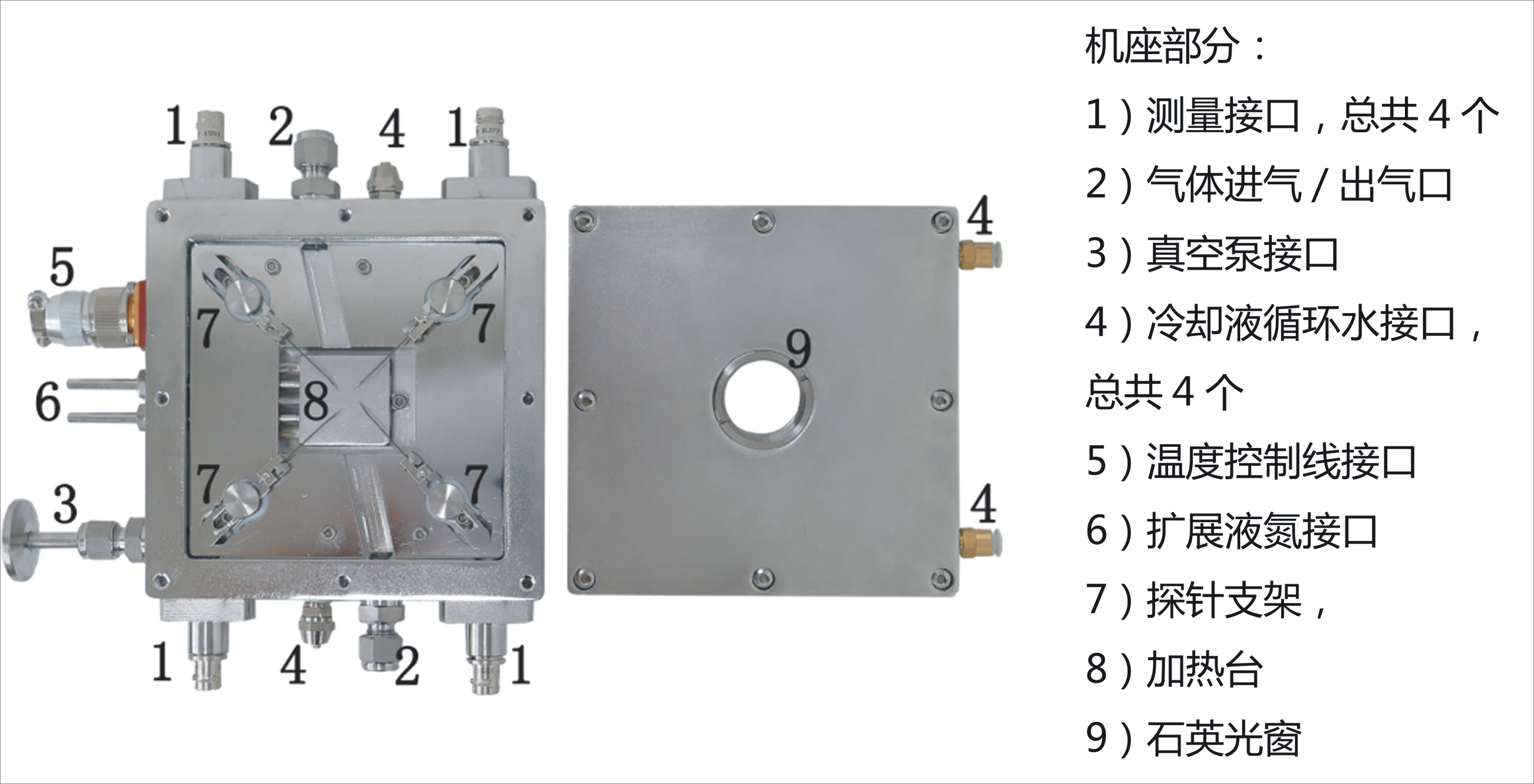

CGS-MT Micro Analysis System

CGS-MT environmental testing system provides a controllable environment with adjustable temperature, humidity, gas, light and pressure condition, which can be used in the testing of sensors, detectors, transistors, and electrochemical devices. Most importantly, the electrical signal can be tested with IR/RAMAN Spectrometer or microscopy.

1. Feature
01) Adjustable probes and numbers
02) Small chamber
03) High magnification
04) Controllable temperature / humidity

2. Product Features
01) Support operando electrical testing with IR/ RAMAN spectrometer or microscopy
02) Testing conditions can be adjusted, such as temperature, humidity, gas, light and pressure
03) Platform temperature control and probes connection, suit for various sensors, detectors, transistors, and electrochemical devices
04) Customized connections and test channel for various materials or devices
05) High insulativity and shielding effectiveness, support for other testing systems
06) Quartz testing window can be replaced by other optic window
07) Humidity can be sync adjusted with gas to obtain target gas of certain concentration in adjustable humidity
08) Liquid source can be used for dynamic gas distribution


3. Specifications
01) Four probes at least for two devices; support for 2, 3 or 4 electrodes test (customizable)
02) Current Range: 1 pA(Programming Solution: 1.5 fA, Accuracy: 1.000% rdg. ± 40 fA) ~20 mA (Programming Solution: 500 nA, Accuracy 0.042% rdg. ± 1.5μA); Output Voltage: ±200 mV (Programming Solution: 5 μV, Accuracy: 0.02% rdg. ±150 μV)~±24 V ( Programming Solution: 200 μV, Accuracy: 0.02% rdg.±1.5 mV).

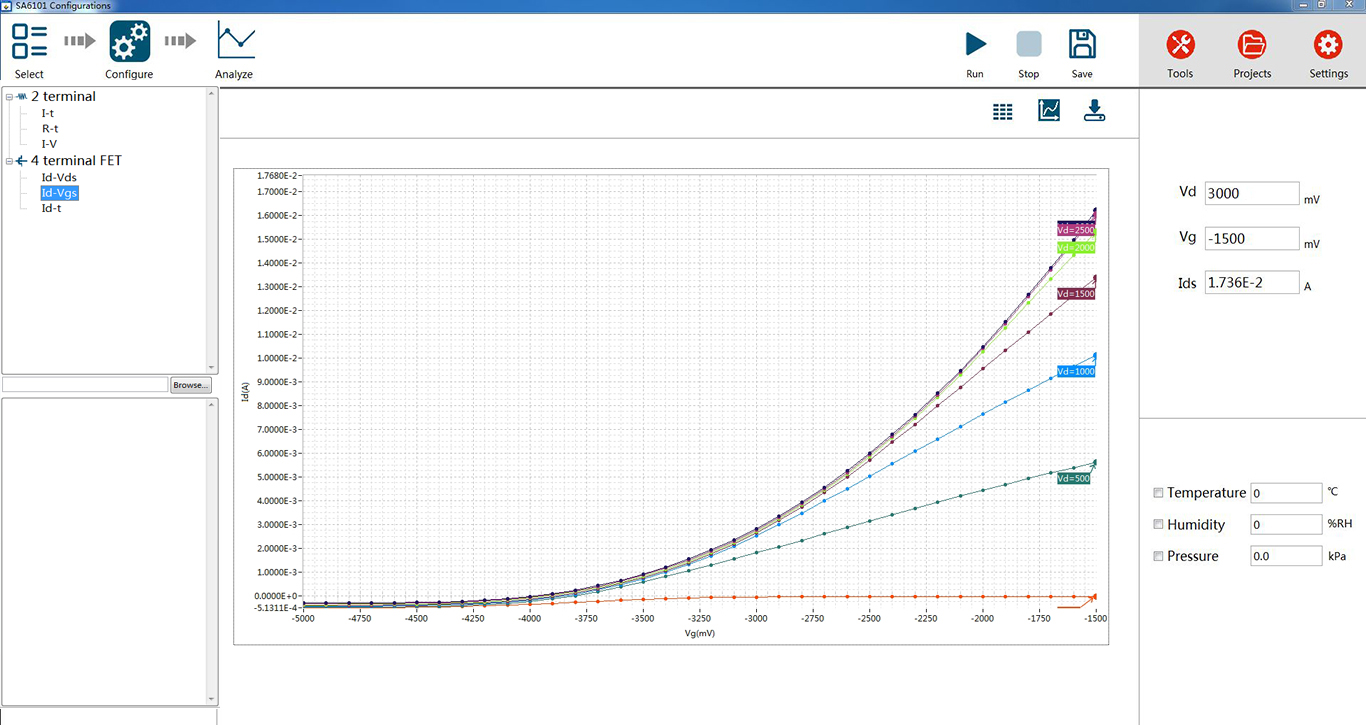

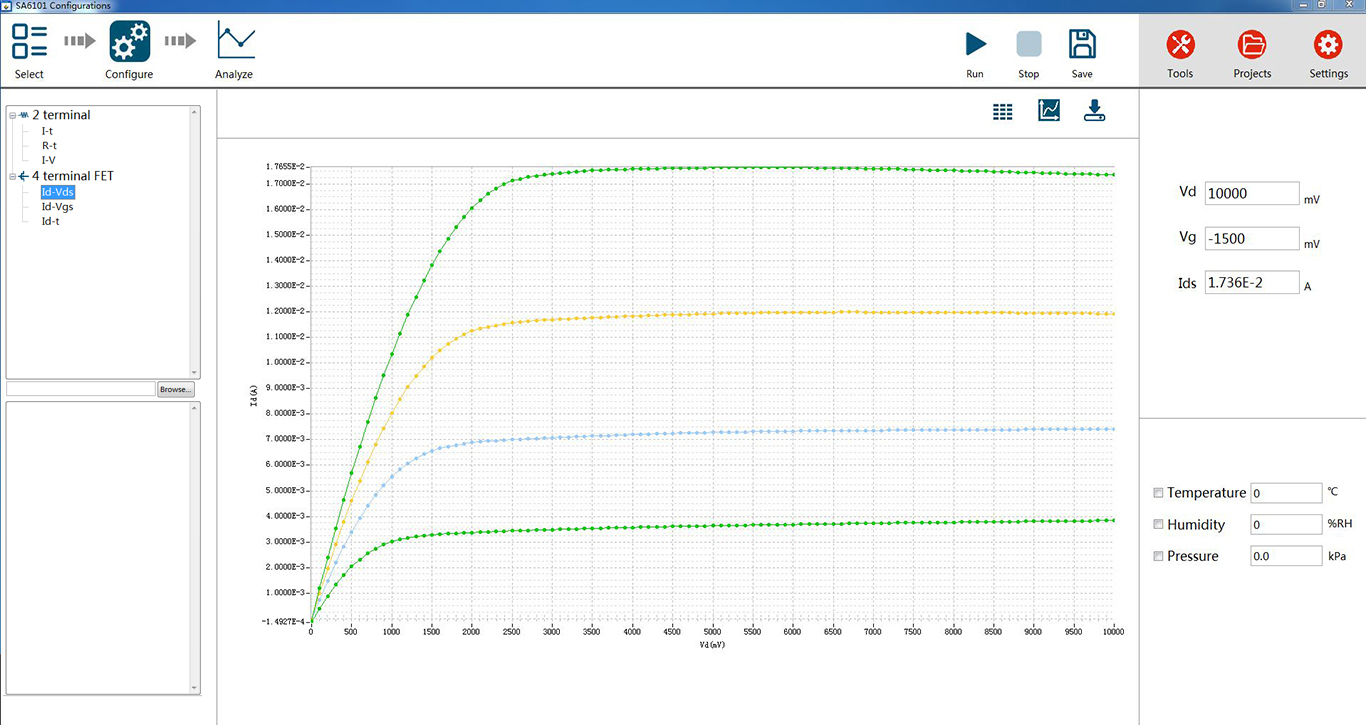

03) Test Functions: I-V, I-t, R-t, Id-Vd, Id-Vg, et al
04) Specific Functions: Gas sensorcalibration, Temperature calibration, Temperature, Humidity, Pressure sync output with electronic signals
05) Triple-concentric cable connection, support for other electric testing system
06) Applications: sensors, detectors, transistors, and electrochemical devices
07) Temperature range: RT-600 °C (precision: 1 °C), Stability: 1°C (
customizable)
08) Chamber volume: less than 100 mL; Platform size: about 120mm*120mm*30mm
09) Quartz testing window: about 20mm
10) Distance between test platform and quartz testing window: less than 10 mm
11) Bottom hole: 2 mm; support bottom photo excitation test or IR transmission test
12) Extended Functionality: Larger gas chamber can be customized, usually install fans, LED, liquid evaporator, etal. In this chamber and use for static gas distribution
13) Extended Functionality: Electrical system timing analysis with
spectrometer (IR, RAMAN, UV etal) for deep monitoring of the reaction process
14) Extended Functionality: Electrical system timing analysis with microscopy for deep monitoring of the reaction influence of morphological changes
15) Extended Functionality: Custom light source synchronous trigger for photoelectricity test

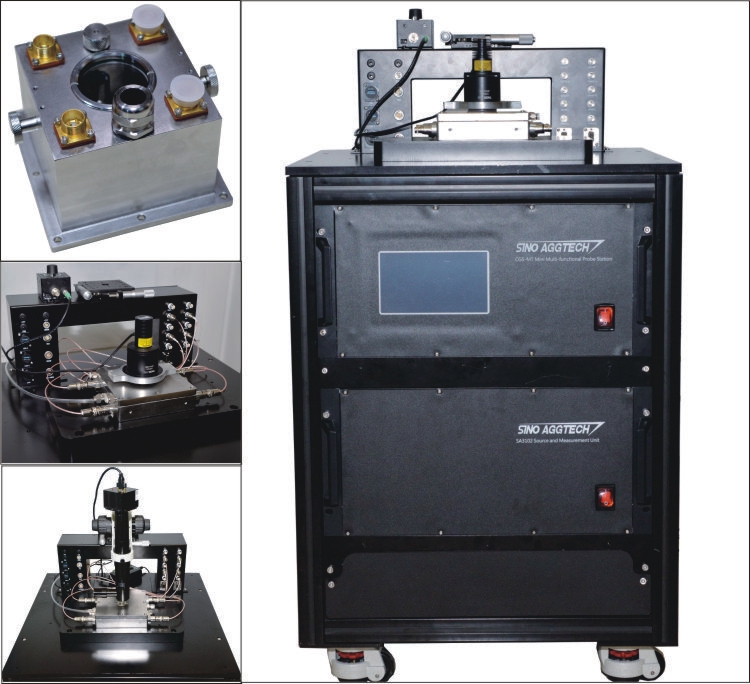

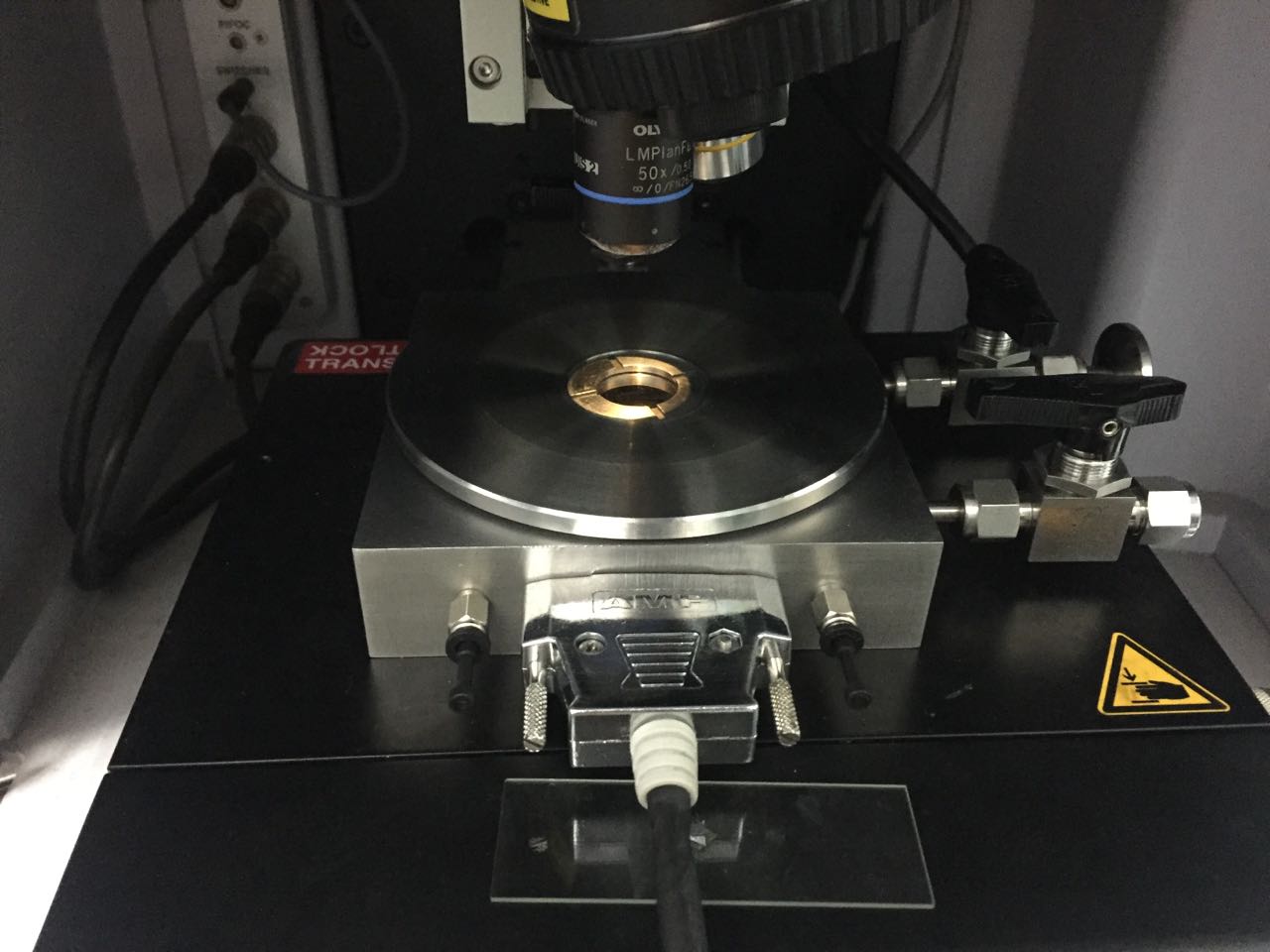

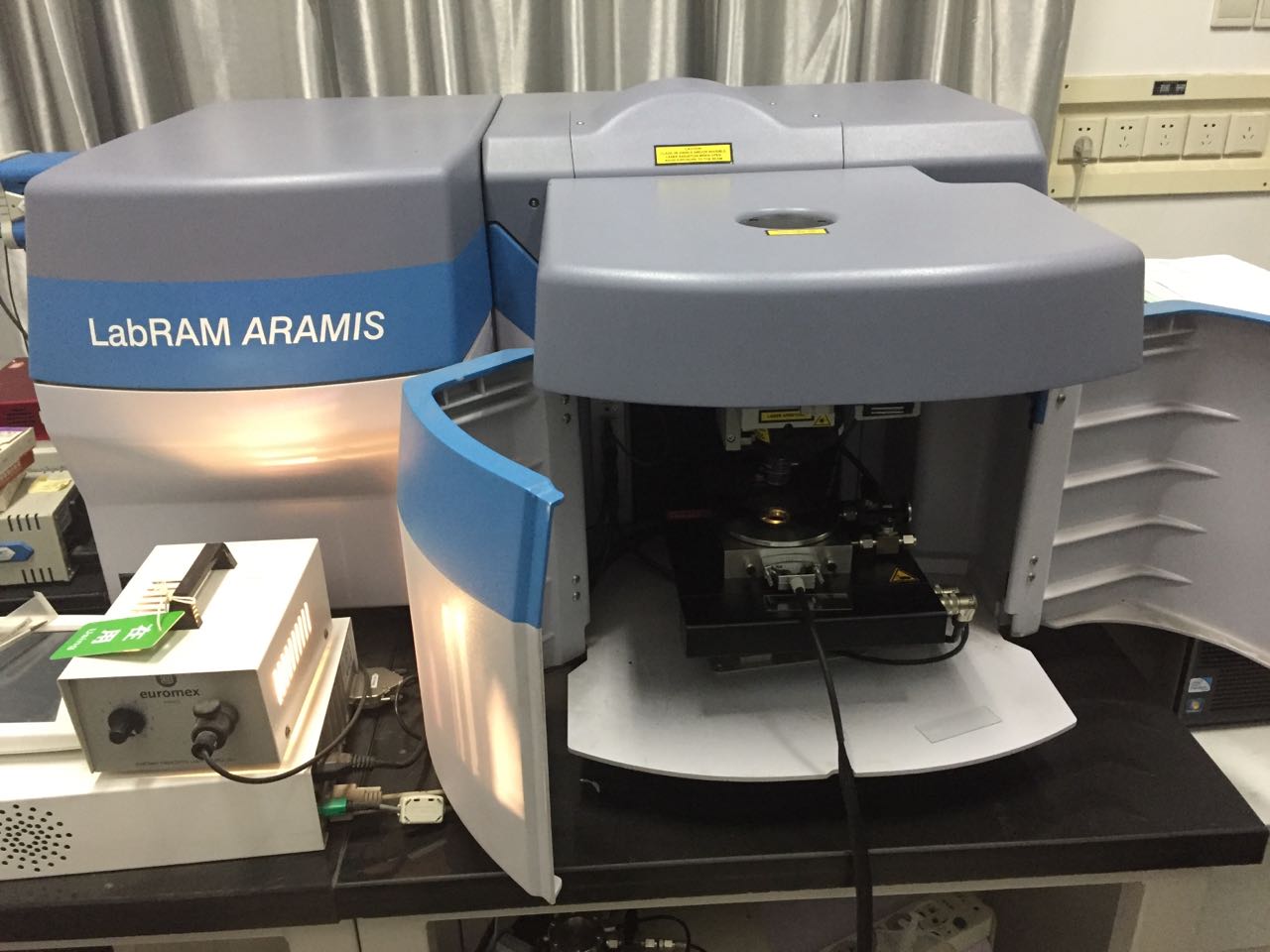

4. Photographs
