MS 3-Dimensional Microscope
MS 3-Dimensional Microscope is consisted of stent, microscope, camera, acquisition card, and software. This microscope could be employed in CGS-1TP or CGS-4TPs intelligent gas sensing analysis system, and used to display the details of electrodes and sensing materials.
1. Specifications
01) LCD screen size: 8 / 10.4 inch
02) Resolution: 640×480 ( 8 ") / 1024 × 768 ( 10.4 " )
03) BNC signal output
04) Optical magnification: 0.7 X~4.5 X
05) Total magnification: 2.5 X~152.4 X ( 8 ") / 3.2 X~198.1 X ( 10.4" ), about 1000 in 17 inch display
06) Objective: 0.3 X, 0.5 X, 0.75 X, 1 X, 1.5 X, 2 X

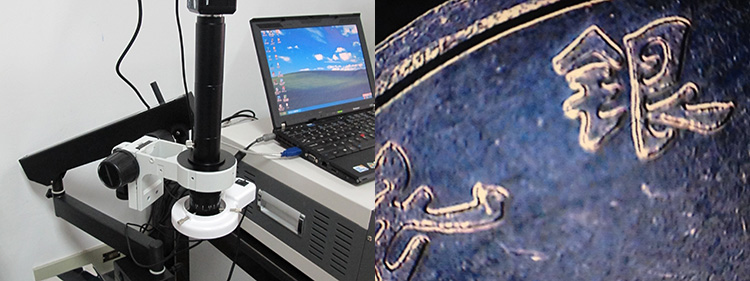

2. Photographs
